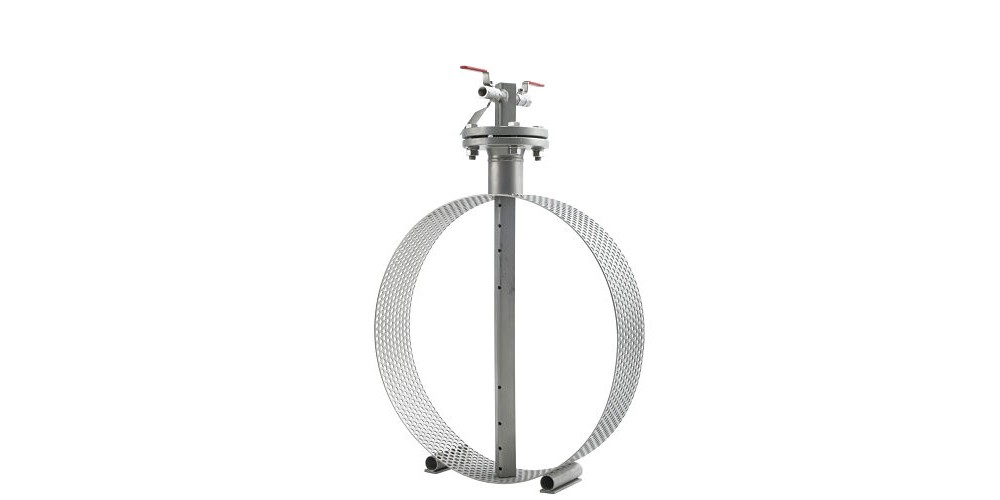

For steam measurement, we recommend Pitot tubes, which are pressure-reducing devices with very low pressure drop. They can be installed in pipes from 35mm to 8000mm. They have good robustness at very high temperatures and high pressures.

Application areas

  • Process measurements of air, Gas combustion and other gases, even with extremely high temperatures (up to 1200°C)
  • Steam measurements for pressures up to 180 bar and temperatures up to 560°C
  • Flue gas flow measurement especially for steam saturated gases, high dust loads, corrosive atmospheres etc.
  • Flow measurements in liquids with medium or low viscosity

Main features

  • Low remaining pressure drop./li>
  • No moving parts.
  • High long term stability.
  • Nearly maintenance free.
  • Measurement in both directions is possible.
  • Wide scope of materials for highest resistance against corrosion.
  • Accuracy: ±1% from the measured value with excellent repeatability: ±0,1%.
  • Standard material: 316SS – optional materials are Hastelloy B and C in different variations, Monel, 1.4539, Incone
  • Pressure from 0 to 640 bar.
  • Temperature from-200°C to +1200°C.
