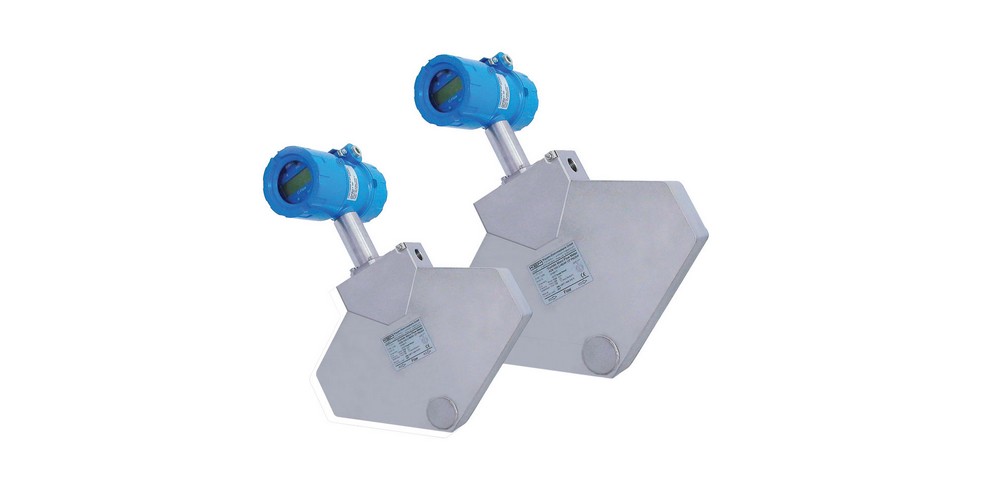

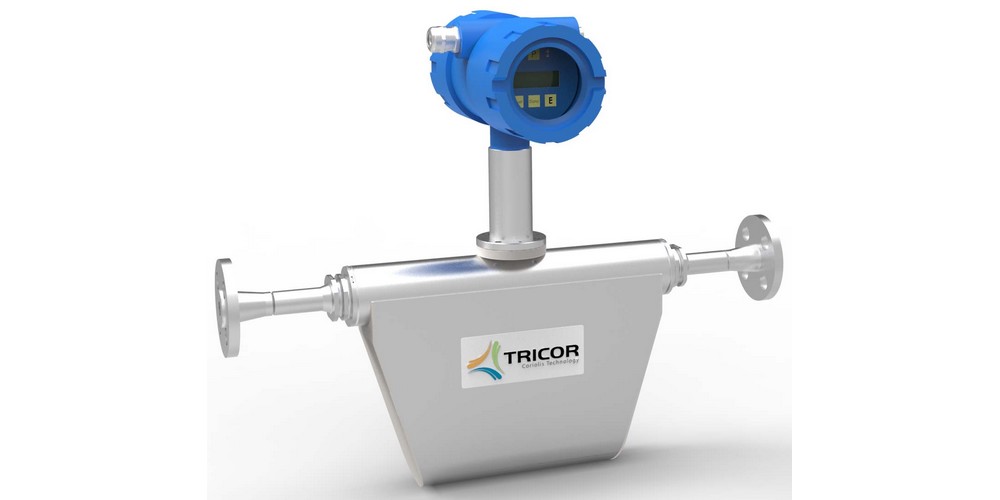

Coriolis Flowmeters Tricor

The Coriolis mass flowmeters Tricor operate with two parallel tubes excited by electric coils. The fluid flowing inside the tubes deform slightly them. Specific sensors detect the tubes shifts. The shifts give direct information about the mass flow.

With Coriolis flowmeter Tricor you need only one sensor to measure core values such as mass flow, density and temperature. The measuring range is between 4.5 and 60 000 kg / h, the density between 500 and 2500Kg/m3.

Pressure: 350 bar max temperature: -40 to 125 ° C and accuracy <0.1%
Applications: polyurethanes, paints, liquefied gases, contaminated or aggressive media…
