Minix

The variable area flowmeters FVA Minix measure the volume flow of liquids or gases transparent in closed conduits. An integrated needle valve can manually regulate the flow. The measurement range varies from 0.1l/h to 500l/h for liquids and 2l/h to 8m3/h for gas. Many scales are available for all types of liquid and gas. The Minix flowmeter consists of a borosilicate glass cone and an aluminum frame.

Trogflux

The variable area flowmeters FVA Trogflux measure the volume flow of transparent liquids or gases in closed conduits. The measurement range varies from 12,5l/h to 25m3/h for liquids and from 200l/h to 430m3/h for gas. Many scales are available for all types of liquid and gas. The measurement cone is in trogamid or polysulfone.

  • Product scales for liquids and gases
  • Simple assembly and handling
  • Low-price plastic design
  • Short delivery times for standard versions.

Tubux

The Variable area flowmeters FVA Tubux measure the volume flow of transparent liquids or gases in closed conduits. The measurement range varies from 1l/h to 25m3/h for liquids and 16l/h to 430m3/h for gas. Many scales are available for all types of liquid and gas. The Tubux flowmeter is made in borosilicate glass cone and a stainless steel frame.

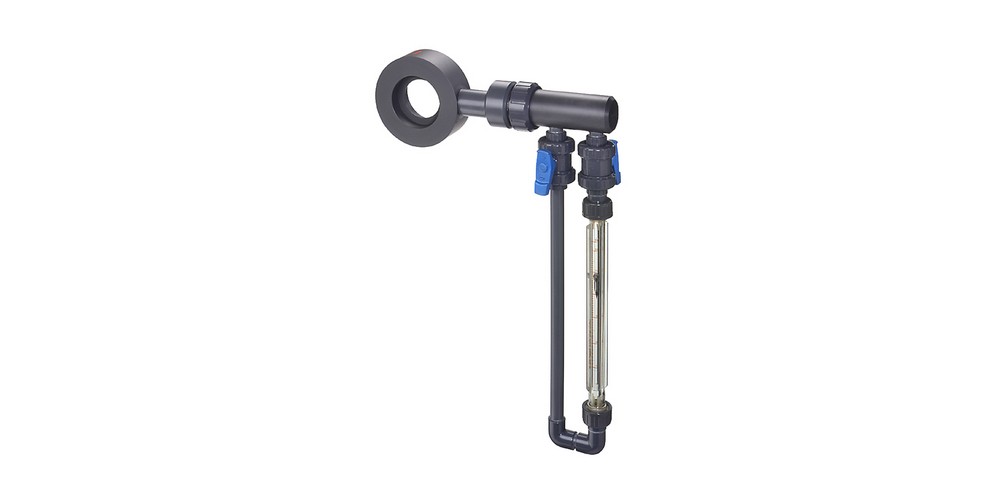

FO N4

The flowmeter FO N4 is an orifice plate flowmeter adapted to measure transparent liquid in closed conduits. It requires no power adapter and can be mounted in any position without affecting the accuracy. It meets the requirements for treatment and disinfection of swimming pools and ponds.

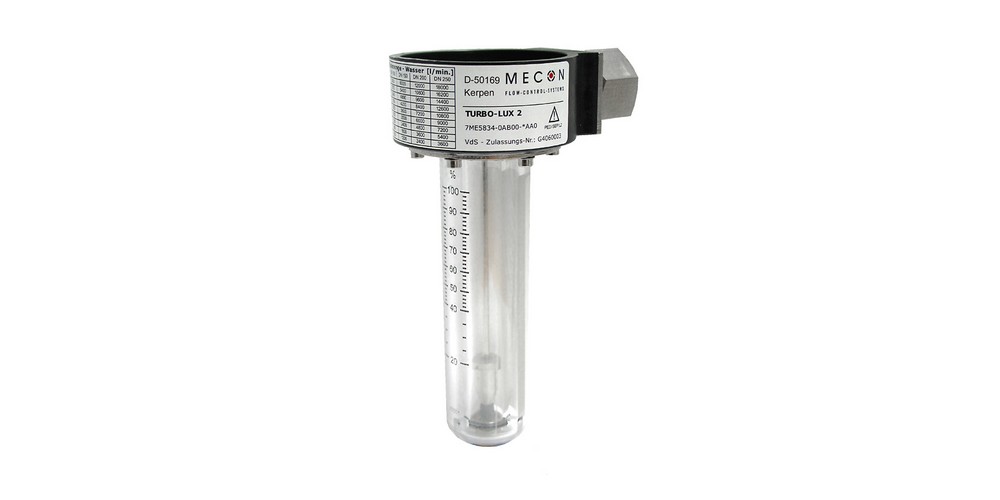

Turbo Lux

The Turbo Lux flowmeter is made to measure water flow in closed circuit. It is particularly suited to the system of fire protection like sprinkler appication. Equipped with a diaphragm for pipes of 80, 100, 150, 200 or 250mm, it is very easy to install and requires no electrical equipment.

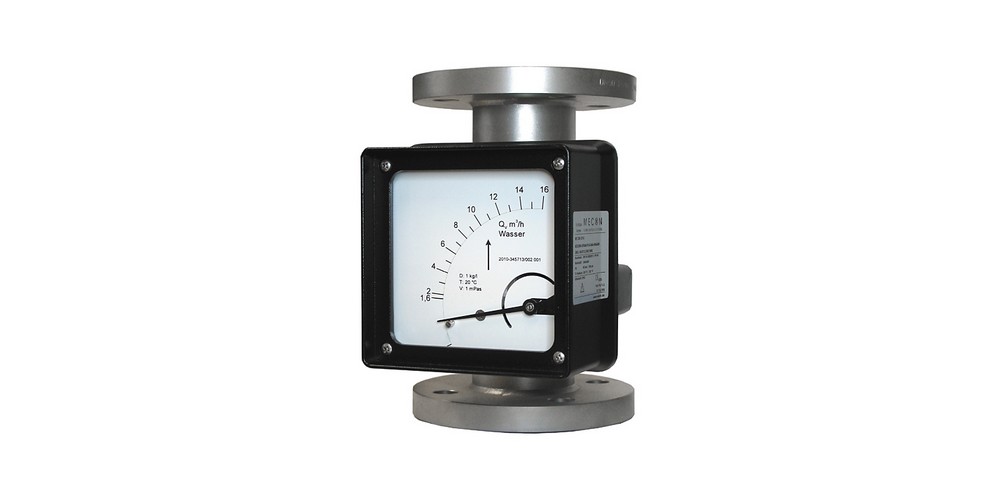

RE250

Made entirely of metal, the variable area flowmeter RE250 has a standard length of 250 mm. The RE250 is used in varied ways to measure liquids and gases in closed conduits. Particularly robust, suitable for extreme temperatures and pressures (respectively 300°C and 400 bars), it meets the requirements of pharmaceutical and chemical industries. Available from DN15 up to DN100, the measurement ranges is available from 5l/h to 100m3/h for liquids and 150l/h to 3000m3/h for gas.

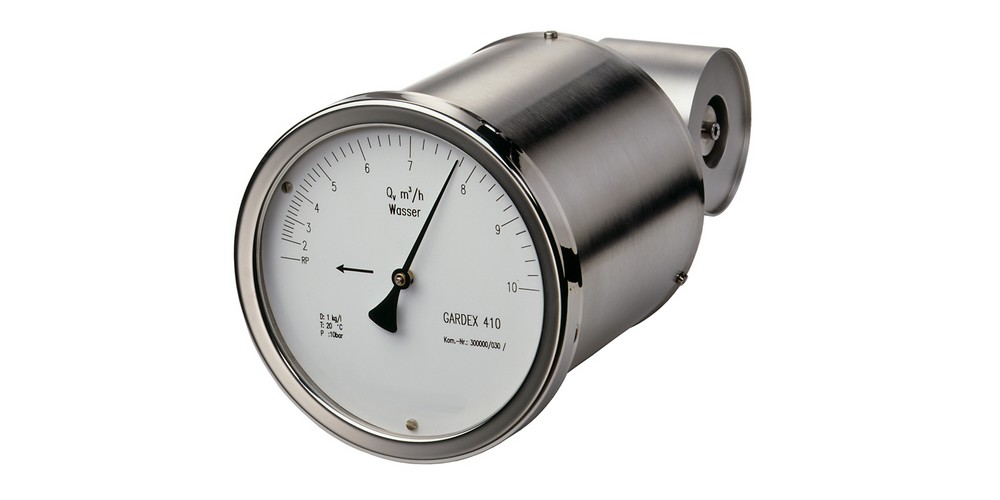

Gardex

The flowmeter FI Gardex is a robust instrument that can measure and control liquid or gas flow, from any flow direction. The sensor of the flowmeter FI Gardex consists of a pallet and a balance beam and operates on the principle of balance. It exists from pipes DN25 up to DN400 and for measurement ranges from 4m3/h to 1350m3/h for liquids and 120m3/h to 40833m3/h for gas.

FI Intra

FI Intra is a Flap indicator of speed for transparent liquid. It is suitable for the chemical, water and clean water. Particularly robust, simple and easy to maintain, it can be mounted in horizontal or vertical way. Flow and temperature max. respectively: 160l/h and 140°C.

FI Prima

FI Prima is an indicator of speed for non-transparent liquid. It is suitable for the chemical, water and clean water applications. Particularly robust, simple and easy to maintain, it can be mounted in horizontal or vertical way. Flow and temperature max. are respectively: 160l/h and 250°C. Models exist in DN25 to DN250.
